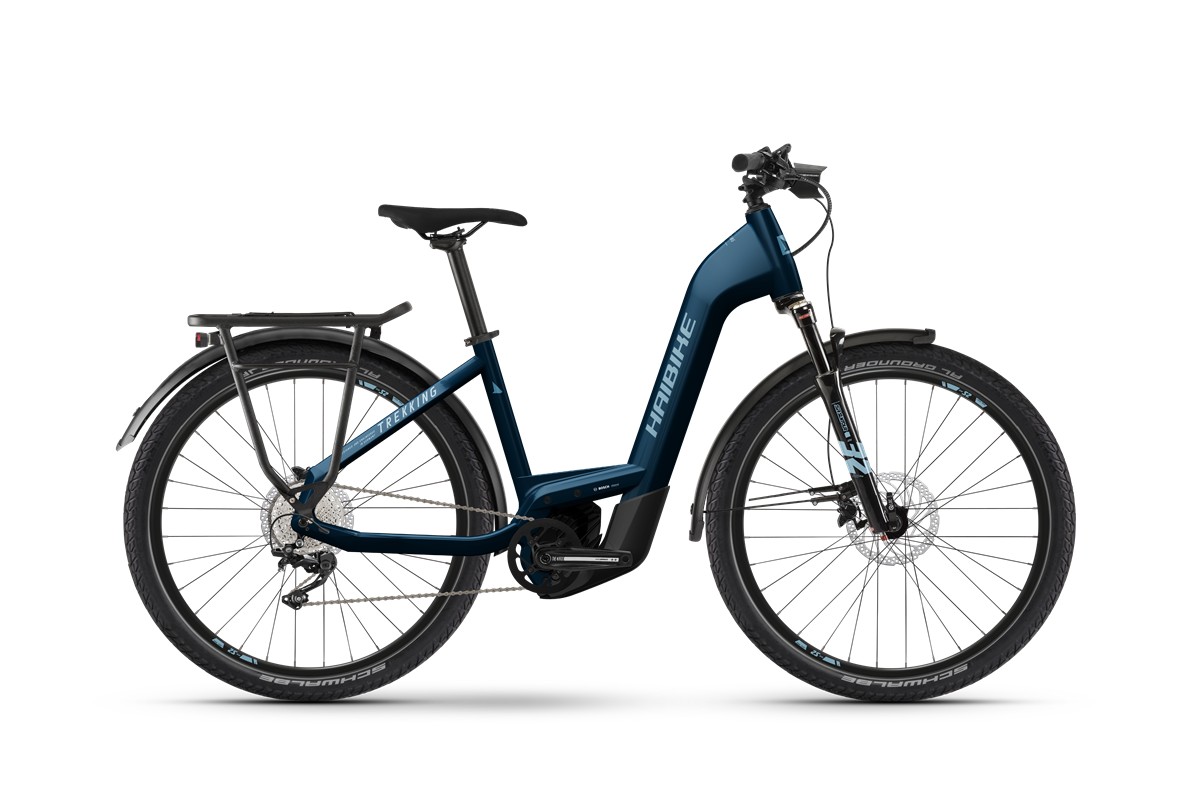

Haibike Trekking 8 (Low)
ABOUT THE BIKE
With the new Trekking 8 LOW, you won't compromise on comfort, design or equipment. Thanks to the brand new Bosch Performance CX Smart System motor with 85 Nm torque and 750 Wh battery, you have a strong drive that supports you powerfully from the first turn of the pedals. The low step-through, high-quality Shimano gear and brake components, a 100 mm suspension fork from SR Suntour and the equipment complying with the road traffic regulations make this bike not only very comfortable, but also a real visual highlight.
KEY FEATURES
FRAME MATERIAL
Aluminium
DRIVE UNIT
Bosch Performance CX Smart System, 85Nm, 25km/h
BATTERY
Bosch PowerTube 750Wh
FORK
SR Suntour Mobie 25 LOR, Travel: 100mm
SPECIFICATIONS
- ENGINEBosch, Performance CX Smart System, 250 W, 85 Nm
- DISPLAYBosch, Kiox 300 + LED Remote
- BATTERYBosch, PowerTube, 750 Wh
- FRAME FAMILYHaibike, Trekking Bosch Gen 4 Herren, Aluminium
- FORKSR Suntour, Mobie 25 LOR, Lockout, Steel spring, 100 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
- CRANK ARMHaibike, Forged, Aluminium
- BRAKE (FRONT)Shimano, MT400, 2-piston disc brake
- BRAKE (REAR)Shimano, MT400, 2-piston disc brake
- TUBEPresta valve
- RIMRodi, Tryp 30, With Eyelets, Double Wall, Aluminium
- CLAMPING RINGQuick Release, Quick release, 38.1 mm
- REAR DERAILLEURShimano, Deore M5100
- SHIFT LEVERShimano, Deore M5100, Trigger switch
- BOTTOM BRACKETintegrated in the motor
- SPROCKETShimano, M5100, 11 - 51 teeth
- CHAINKMC, e11S
- CHAINRINGSteel, 38 teeth
- BRAKE LEVERShimano, MT401-3, Aluminium
- BRAKE DISC (FRONT)Shimano, RT30-M, 180 mm
- BRAKE DISC (REAR)Shimano, RT30-M, 180 mm
- TYRESchwalbe, Al Grounder Performance, 60-584, 27.5 x 2.4 inch
- FRONT WHEEL HUBShimano, MT400, Centerlock
- REAR WHEEL HUBShimano, MT401, Centerlock
- SPOKESSapim, Leader
- HANDLEBARHaibike Components, TheBar ++, 740 mm
- GRIPSXLC, Comfort bo3
- STEMHaibike Components, The Stem ++, A-head, 31.8 mm
- HEADSETFeimin, A-Head Tapered, Ball bearing
- SADDLEHaibike Components, TheSaddle
- SEAT POSTAluminium, Patent, 34.9 mm
- PEDALSVP, E461, Aluminium, with Reflector
- HEADLIGHTHaibike, Skybeamer 300, 100 lm
- REAR LIGHTAXA, Juno Ebike
- DYNAMOvia system battery
- CARRIERStandWell, system carrier
- FENDERSSKS, Chromoplastics
- STANDUrsus, Mooi, Rear stand
- PERMITTED TOTAL WEIGHT130.0 kg
