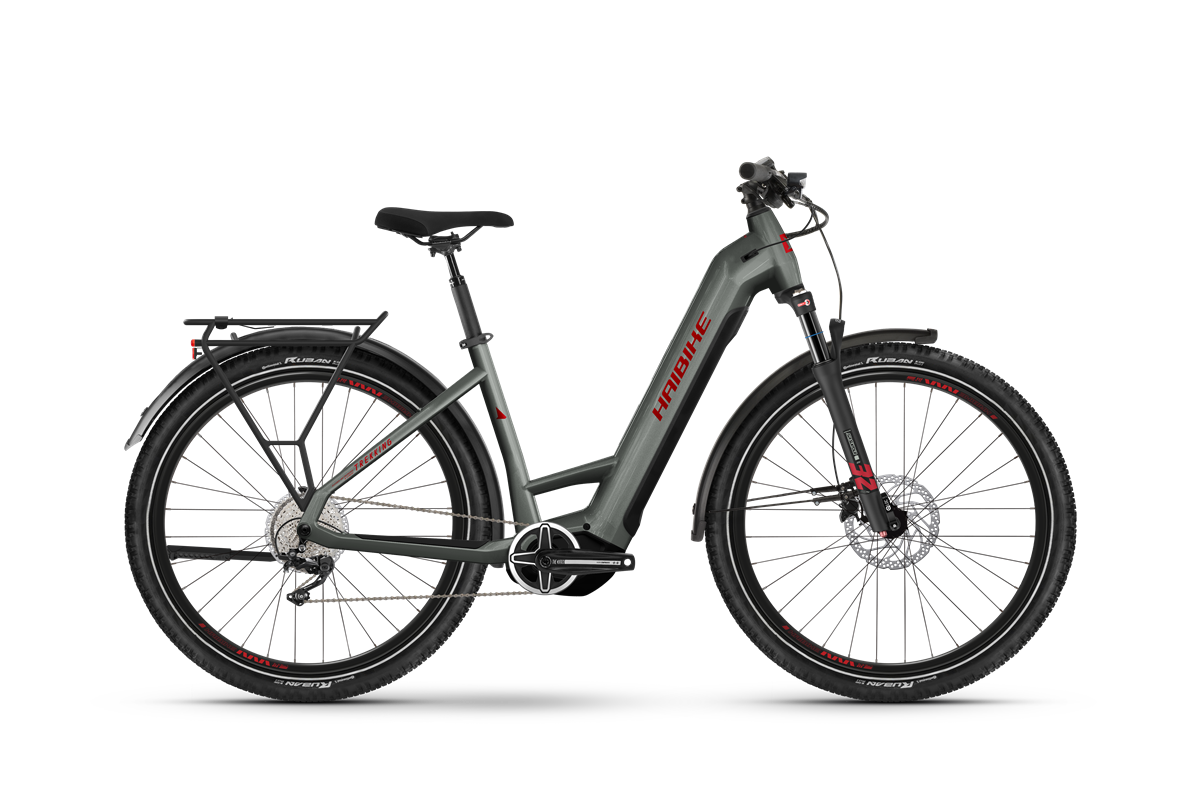

Haibike Trekking 5 (Low)
ABOUT THE BIKE
Are you ready for your next eBike adventure? The Haibike TREKKING 5 LOW will assist you to any destination with ease! Whether a leisurely after-work ride or an extended discovery expedition: This eTrekking bike wows with its versatility, comfort and solid components. The low step-through allows you to get on and off quickly and safely. Luggage rack, lighting and mudguards make the TREKKING 5 LOW StVZO-compliant* and the Modular Rail System allows you to easily attach additional accessories. If your physical energy is running low on the road or it gets a little steeper, the new Yamaha PW-S2 drive supports you reliably. *For countries outside Germany, please check your local road traffic regulations for compliance.
KEY FEATURES
FRAME MATERIAL
Aluminium
BATTERY
InTube 720Wh
FORK
SR Suntour Mobie 25 LOR, Travel: 100mm
DRIVE UNIT
Yamaha PW-S2 System, 75Nm, 25km/h
SPECIFICATIONS
- ENGINEYamaha, PW-S2, 250W, 75 Nm
- DISPLAYYamaha, Side Switch, 1.7" LCD, 7 functions
- BATTERYInTube, 720 Wh
- FORKSR Suntour, Mobie 25 LOR, Lockout, Steel spring, travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
- CRANK ARMMiranda, Kies
- BRAKE (FRONT)Shimano, MT410, Hydraulic disc brakes
- BRAKE (REAR)Shimano, MT410, Hydraulic disc brakes
- TUBEDunlop valve
- RIMSchürmann, Yak25, with eyelets, hollow rim, Aluminium
- CLAMPING RINGQuick Release, Quick release, 38.1 mm
- REAR DERAILLEURShimano, Deore M5100
- SHIFT LEVERShimano, Deore M5100, Trigger switch
- BOTTOM BRACKETintegrated in the motor
- SPROCKETShimano, M5100, 11 - 51 teeth
- CHAINShimano, CN-M6100
- CHAINRINGSteel, 38 teeth
- CHAIN GUIDENylon directmount
- BRAKE LEVERShimano, MT402, Aluminium,
- BRAKE DISC (FRONT)Shimano, RT30-M, 180 mm
- BRAKE DISC (REAR)Shimano, RT30-M, 180 mm
- TYREContinental, Ruban Reflex, 27.5" x 2.3"
- FRONT WHEEL HUBShimano, MT400, Centerlock
- REAR WHEEL HUBShimano, MT400-B, Centerlock
- SPOKESSapim, Leader, Black
- HANDLEBARErgoriser, oversize, 720 mm
- STEMXLC, A-Head verstellbar, A-head, 31.8 mm
- HEADSETFeimin, A-Head Tapered, Aluminium, Cartridge
- SADDLESelle Royal, Essenza
- SEAT POSTAluminium, Patent, 34.9 mm
- PEDALSVP, E461, Aluminium, with Reflector
- HEADLIGHTHerrmans, H-Black MR4, 40 lm
- REAR LIGHTSpanninga, Aerline 2 Brake
- DYNAMOvia system battery
- CARRIERSystemgepäckträger MIK, 25 kg
- FENDERSCurana, Apollo 70, Aluminium
- STANDUrsus, Mooi, Rear stand
- PERMITTED TOTAL WEIGHT130.0 kg
- GEAR SHIFTShimano, Nexus
GEOMETRY
| FRAME SIZE (I.E. S, M, ...) | S | M | L |
|---|---|---|---|
| A | |||
| B | |||
| D | |||
| E | |||
| F | |||
| G | |||
| H | |||
| I | |||
| J | |||
| K | |||
| L |
