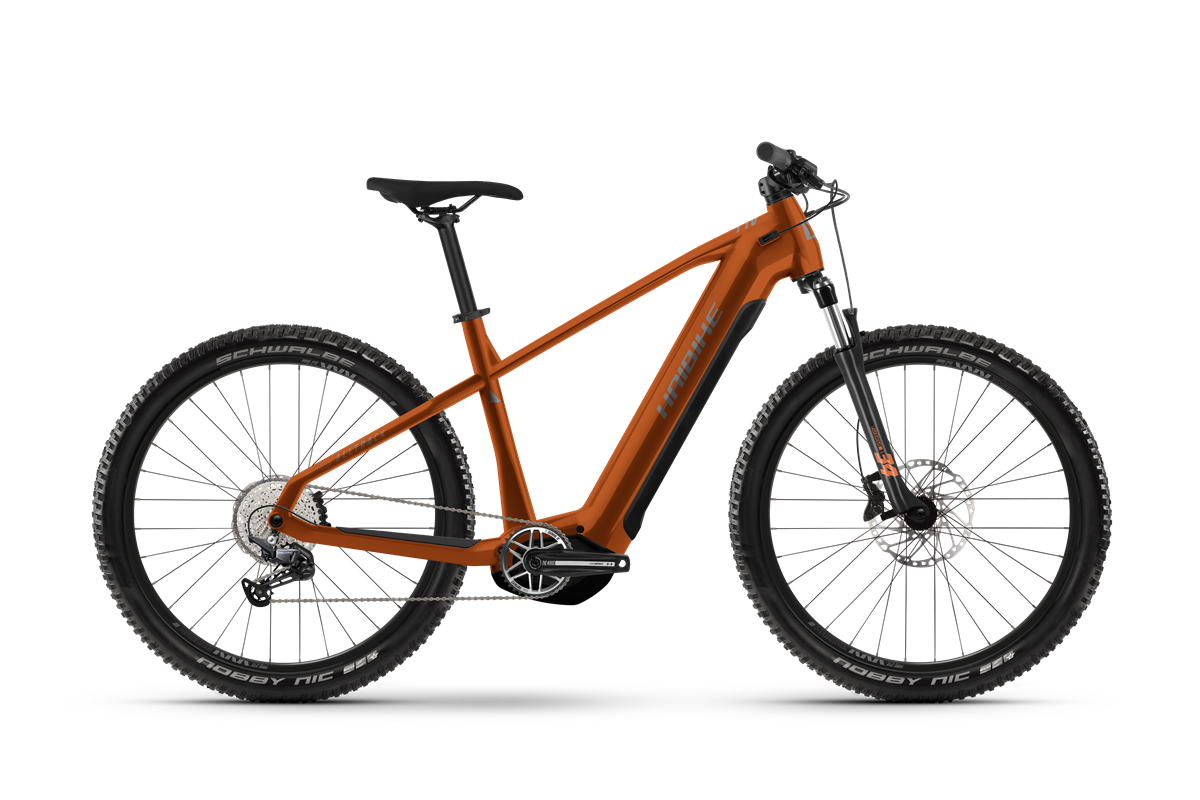

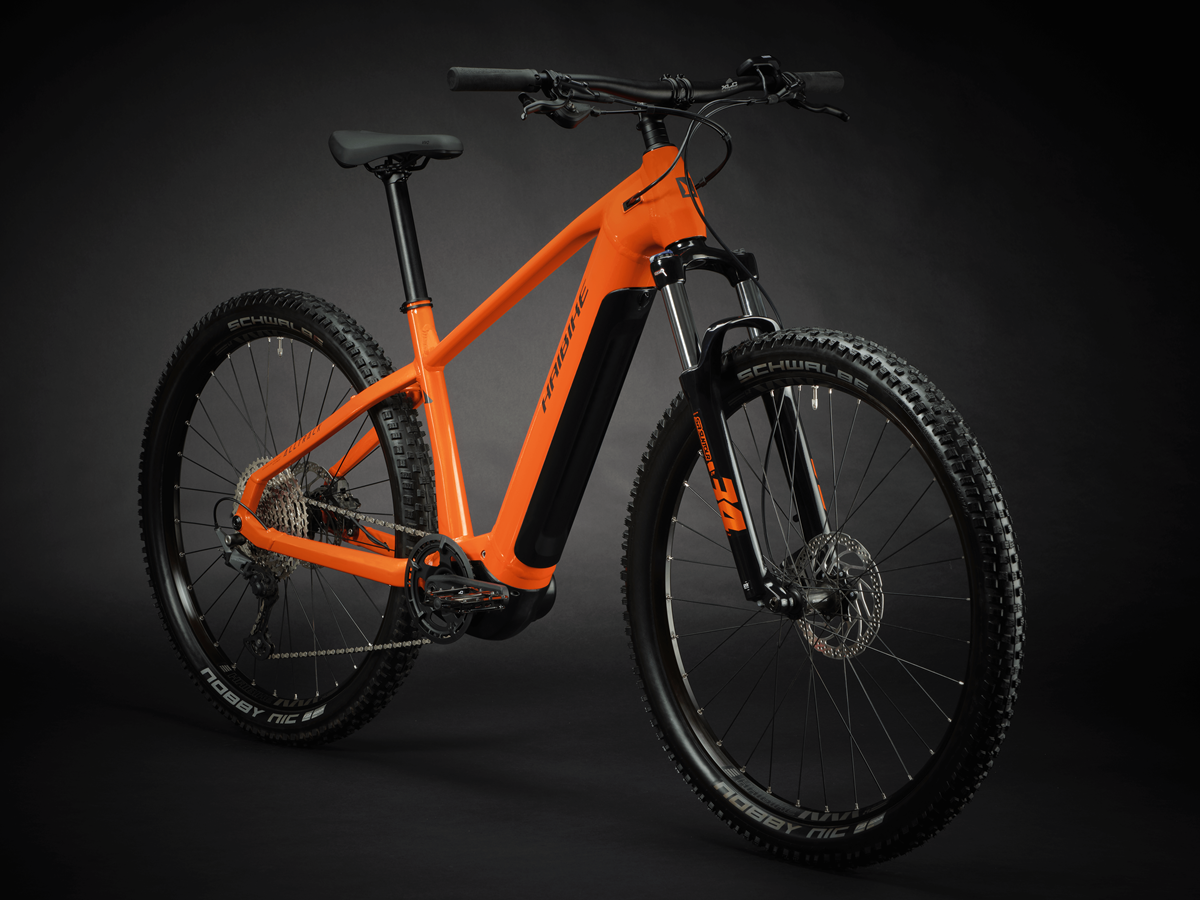

Haibike AllTrack 6 29"
ABOUT THE BIKE
Are you looking for a reliable hardtail eMTB for sporty use? Then our ALLTRACK 6 is the ideal bike for your eBike adventures! The brand new, powerful Yamaha PW-S2 motor, together with the integrated 720 Wh battery ensures great range, on or off road. Robust parts such as Shimano Deore rear derailleur, powerful disc brakes and the 120 mm SR Suntour suspension fork guarantee safe and comfortable riding pleasure. The ALLTRACK 6 is available in the smaller frame sizes S and M with 27.5" and in sizes M to XL with 29" wheels.
KEY FEATURES
FRAME MATERIAL
Aluminium
BATTERY
InTube 720Wh
FORK

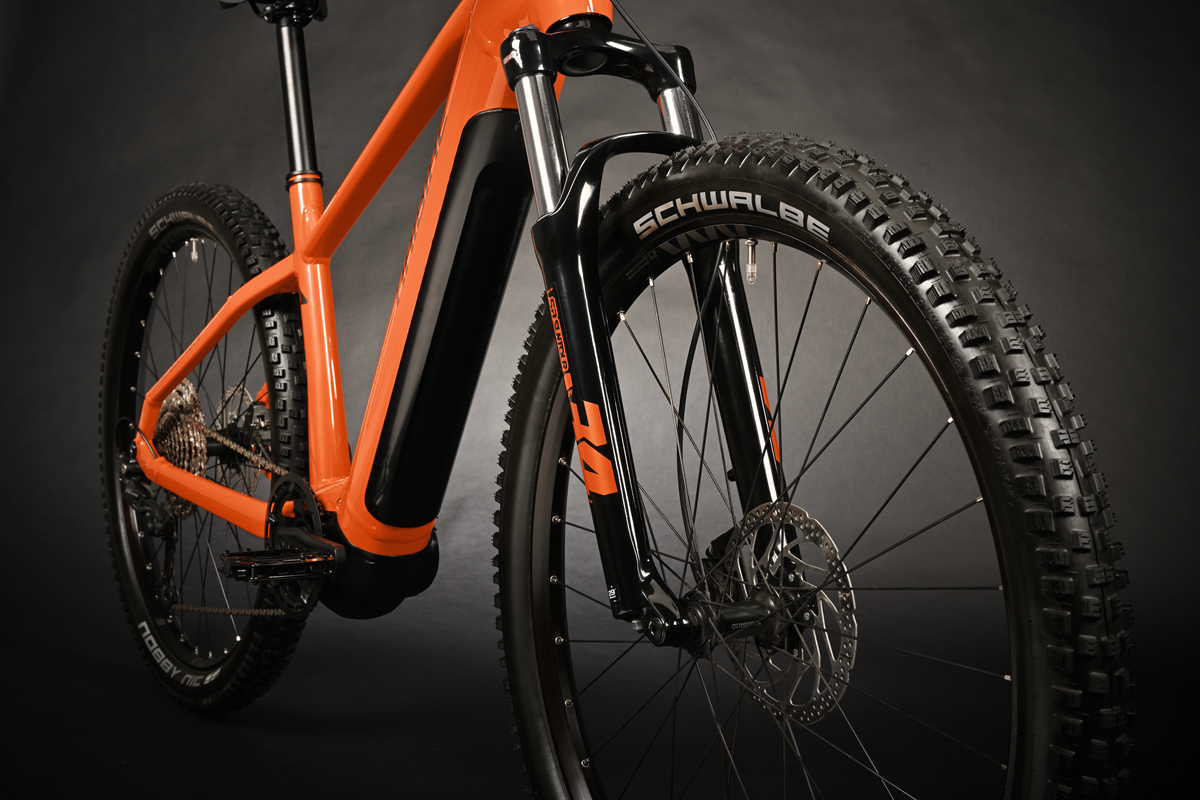

SR Suntour XCM34 NLO DS, Travel: 120mm
DRIVE UNIT
Yamaha PW-S2 System, 75Nm, 25km/h
SPECIFICATIONS

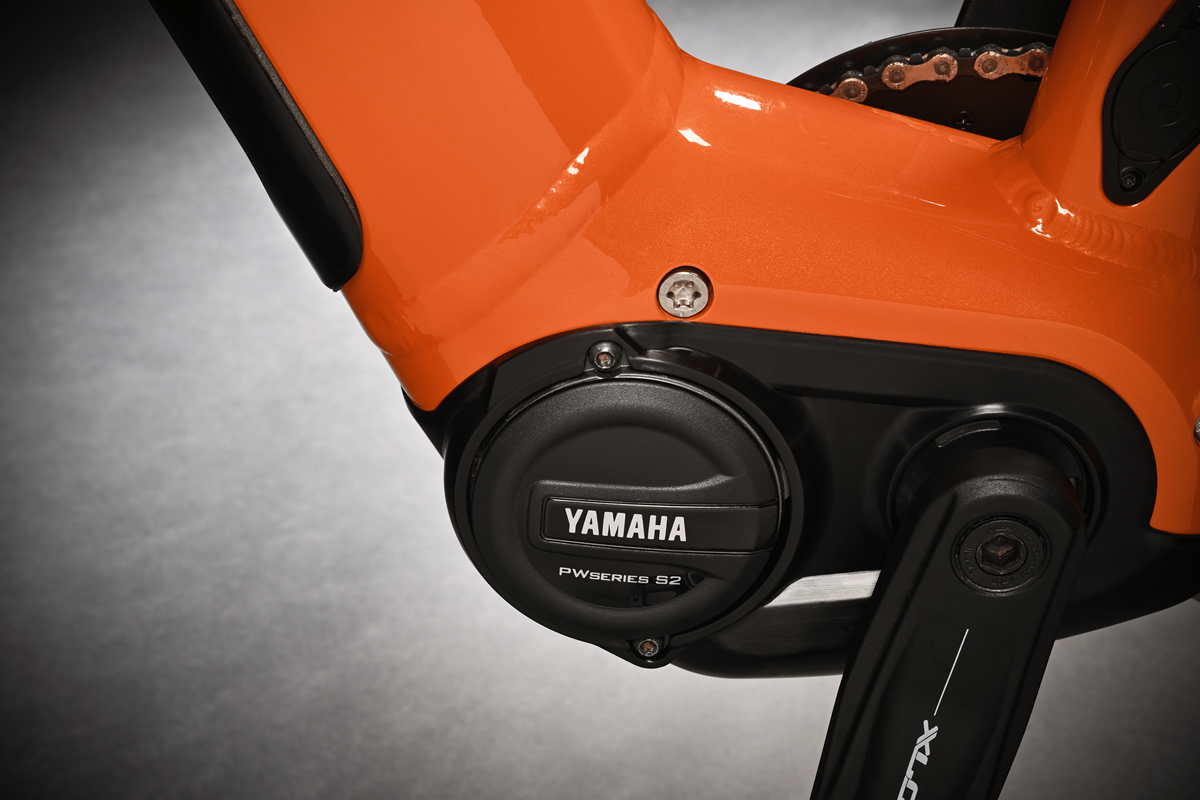

- ENGINEYamaha, PW-S2, 250W, 75 Nm

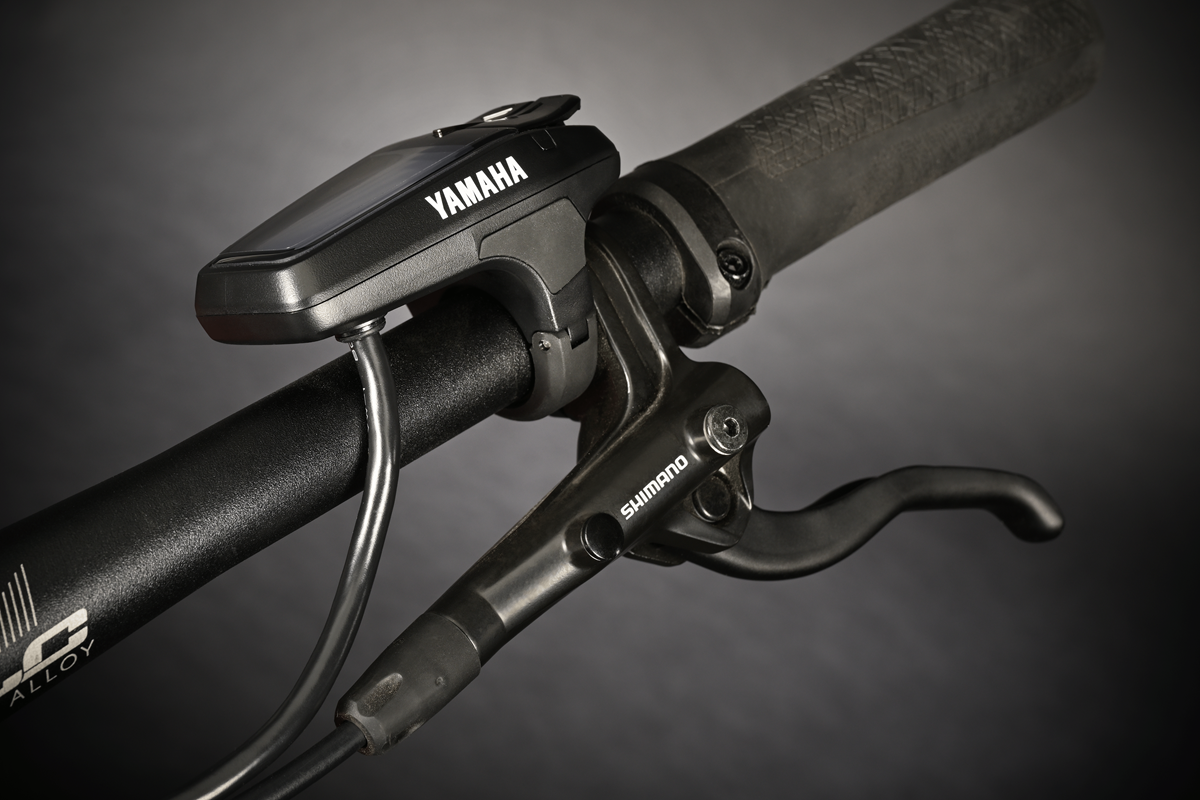

- DISPLAYYamaha, Side Switch, 1.7" LCD, 7 functions
- BATTERYInTube, 720 Wh
- FORKSR Suntour, XCM34 NLO DS, Steel spring/oil, 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
- CRANK ARMMiranda, Kies
- BRAKE (FRONT)Shimano, MT410, Hydraulic disc brakes
- BRAKE (REAR)Shimano, MT410, Hydraulic disc brakes
- TUBEPresta valve
- RIMRodi, Tryp 30, with eyelets, hollow rim, Aluminium
- CLAMPING RINGInternal hexagon, 38 mm
- REAR DERAILLEURShimano, Deore M5100
- SHIFT LEVERShimano, Deore M5100, Trigger switch
- BOTTOM BRACKETintegrated in the motor

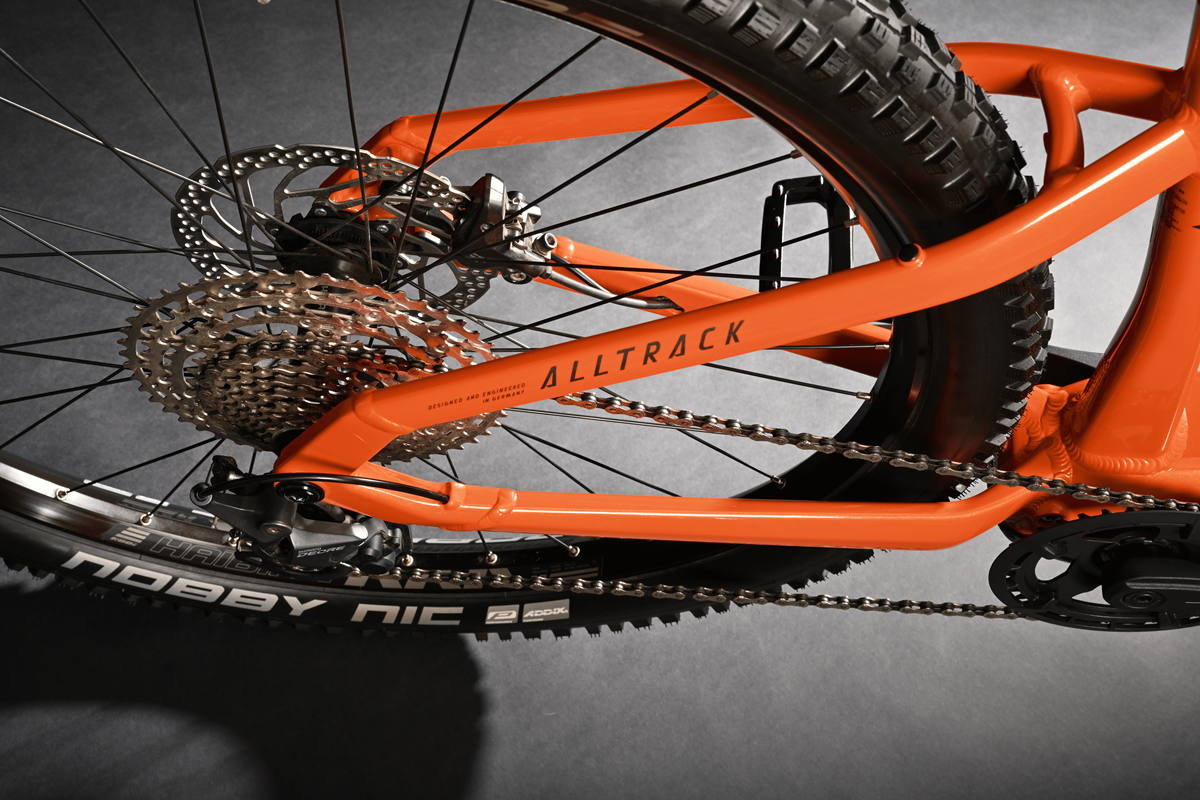

- SPROCKETShimano, M5100, 11 - 51 teeth
- CHAINShimano, HG601
- CHAINRINGSteel, 38 teeth
- CHAIN GUIDENylon directmount
- BRAKE LEVERShimano, MT401, Aluminium,
- BRAKE DISC (FRONT)Shimano, RT30-M, 180 mm

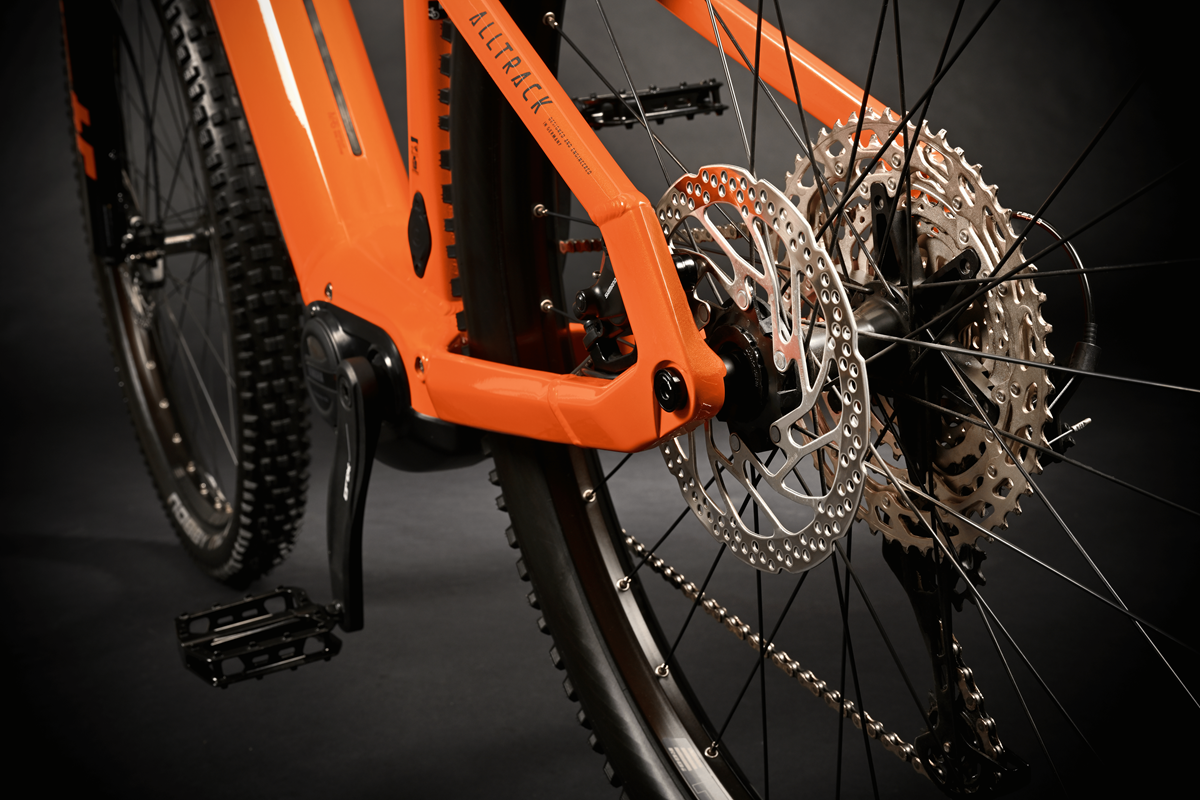

- BRAKE DISC (REAR)Shimano, RT30-M, 180 mm
- TYRESchwalbe, Nobby Nic Performance, 65-622, 29" x 2.6"
- FRONT WHEEL HUBShimano, MT400-B, Centerlock
- REAR WHEEL HUBShimano, MT400-B, Centerlock
- SPOKESSapim, Leader, Black
- HANDLEBARXLC, 720 mm
- STEMXLC, A-Head, A-head, 31.8 mm
- HEADSETFeimin, A-Head Tapered, Aluminium, Cartridge
- SADDLESelle Royal, Vivo Unitech
- SEAT POSTAluminium, Patent, 34.9 mm
- PEDALSFreeridepedal, Aluminium, with Reflector
- PERMITTED TOTAL WEIGHT120.0 kg
- GEAR SHIFTShimano, Nexus
GEOMETRY
| FRAME SIZE (I.E. S, M, ...) | M | L | XL |
|---|---|---|---|
| A | |||
| B | |||
| D | |||
| E | |||
| F | |||
| G | |||
| H | |||
| I | |||
| J | |||
| K | |||
| L |
